Copy Mutual Information

The copy mutual information [KCM19] is a measure capturing the portion of the Mutual Information between \(X\) and \(Y\) which is due to \(X=Y\):

\[\begin{split}\op{I^{copy}}[X \to Y] = \sum_{x \in \mathcal{X}} p(X = x) \begin{cases} d_{KL}\left(p(Y=x|X=x)||p(Y=x)\right) & \textrm{if} p(Y=x|X=x) > p(Y=x) \\ 0 & \textrm{otherwise} \end{cases}\end{split}\]

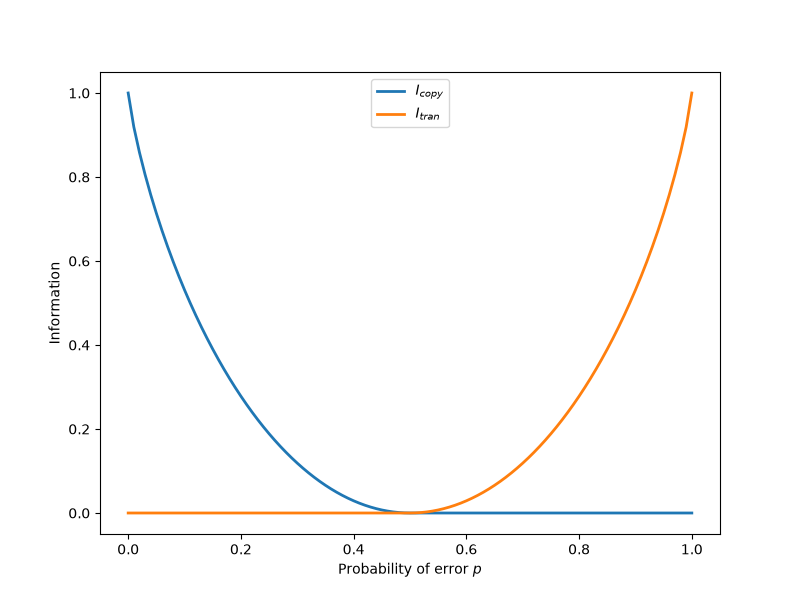

Consider the binary symmetric channel. With probabilities \(\leq \frac{1}{2}\), the input (\(X\)) is largely copied to the output (\(Y\)); while when the probabilities \(\geq \frac{1}{2}\), the output is largely opposite the input. We therefore expect the mutual information to be “copy-like” for \(0 \leq p \leq \frac{1}{2}\), while the mutual information should be not “copy-like” for \(\frac{1}{2} \leq p \leq 1\):

In [1]: from dit.divergences import copy_mutual_information as Icopy

In [2]: from dit.shannon import mutual_information as I

In [3]: bsc = lambda p: dit.Distribution(['00', '01', '10', '11'], [(1-p)/2, p/2, p/2, (1-p)/2])

In [4]: ps = np.linspace(0, 1, 101)

In [5]: ds = [bsc(p) for p in ps]

In [6]: mis = [I(d, [0], [1]) for d in ds]

In [7]: cmis = [Icopy(d, [0], [1]) for d in ds]

In [8]: plt.plot(ps, cmis, ls='-', lw=2, label='$I_{copy}$');

In [9]: plt.plot(ps, [mi - cmi for mi, cmi in zip(mis, cmis)], ls='-', lw=2, label='$I_{tran}$');

In [10]: plt.xlabel(r'Probability of error $p$');

In [11]: plt.ylabel(r'Information');

In [12]: plt.legend(loc='best');

In [13]: plt.show()

API

copy_mutual_information(dist, X, Y)

Computes the copy mutual information. Roughly, it is the portion of the mutual information which results from \(X = Y\).

Parameters:

• dist (Distribution) – The distribution of interest.

• X (iterable) – The indicies to consider as X.

• Y (iterable) – The indicies to consider as Y.

Returns:

Icopy – The copy mutual information of x.

Return type:

float
